April 14th PWA Outing



Introduction:

This was the second outing conducted for AT 31900 at Purdue University. This outing involved multiple flight crews of two individuals each, with a few groups swapped around due to covid-19 issues. Data was collected in this lab for two applications; To gather a crosshatch flight in order to make a hillshade orthomosaic, and to gather data to be used later in a burn plot comparison. All flights were conducted by part 107 licensed operators, under the supervision of Dr. Hupy. No physical errors occurred during this operation, though there was a few slight data errors experienced by some crews. This mainly consisted of GCPs not having enough images to be processed in Pix4dMapper.

Study Area:

Flight outing was conducted at the Purdue Wildlife Area (PWA), 8000 IN-26, West Lafayette, IN 47906. Flights were done on DJI Mavic 2 Pro’s with the onboard sensor being used. On day of flight conditions were good for flying. Vehicles operated over burn fields at PWA, as well as over the salamander tanks and construction zone. The northern burn plot had recently been burned, as outlined in the burn map below. A comparison has been included between burn plot dates in this document, though the last data set for that map was not obtained until a week later.

Metadata:

General

------------------

Location:                                                              PWA

Date:                                                                    4-14-2021

Vehicle:                                                               Mavic 2 Pro

Sensor:                                                                 Onboard (Hasselblad)

Battery:                                                               MV21

Approval # (LAANC/COA/Waiver)



Flight Information

-------------------

Flight Number:                                                    1/2

Takeoff Time:                                                      2:19pm/3:03pm

Landing Time:                                                      2:53pm/3:17pm

Altitude (m):                                                        300ft/300ft

Sensor Angle:                                                      60 degrees/ 90 degrees

Overlap:                                                              80%/80%

Sidelap:                                                                80%/80%



Geolocating

------------------

System used (GCP type/PPK)

Coordinate System:                                             6345



Weather

------------------

Metar Used:                                                        KLAF



Crew

------------------

PIC:                                                                      Trevor Redpath

VO:                                                                      Conner

Submitter:                                                           Trevor Redpath



Figure 1: Construction Trailers

Figure 2: Vehicle in the Flight Zone

Figure 3: Salamander Tank

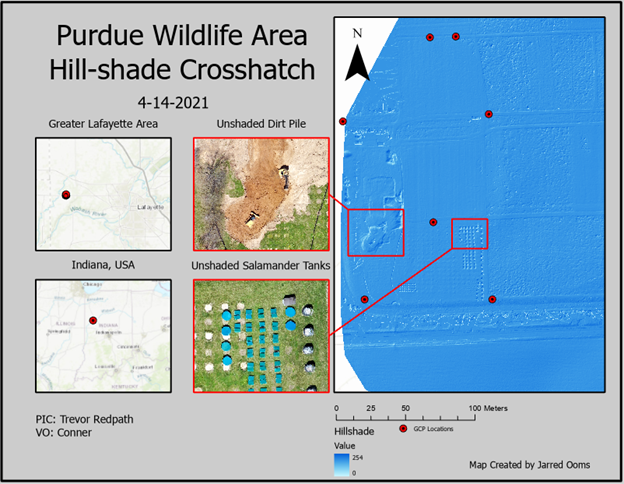

Figure 4: Orthomosaic With Hillshade Cuts 1/2

Figure 5: Orthomosaic With RGB Cuts 2/2

Figure 6: PWA Burn Plot Map

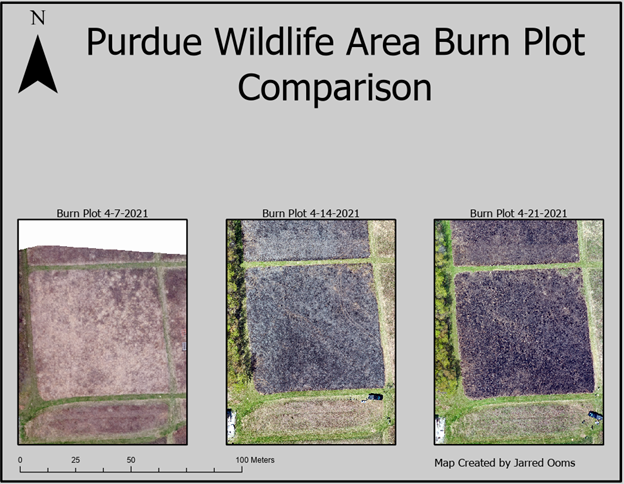

Figure 7: Burn Plot Comparison
